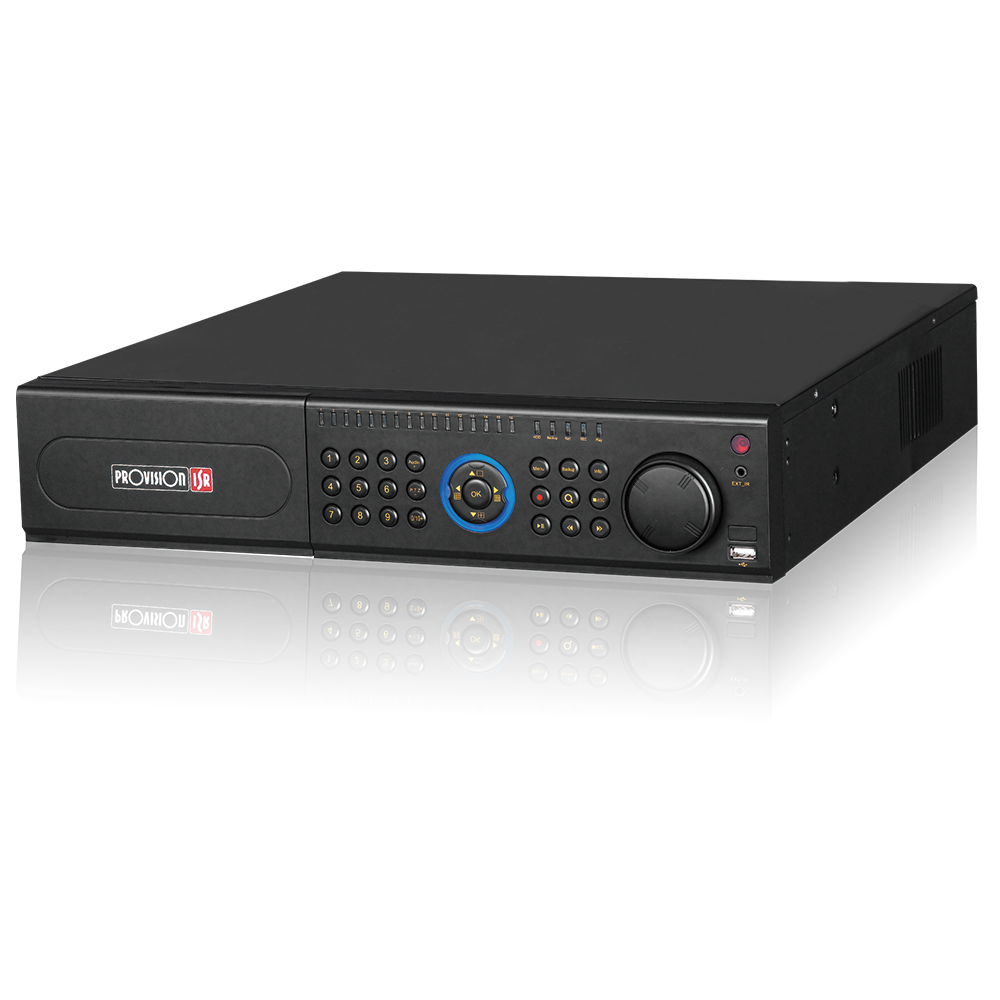

- 64CH 8MP NVR Input: 64 Channel (Via Network) • Output: HDMIx2(4K), VGA • 2U Case, 8 HDD + RAID • Audio In/Out • Alarm In/Out • 2x1000Mbps Network.

VIDEO:

- Input: 64 Channel via Standard network connection.

- Output: HDMI1: 1280x1024, 1920x1080 (1080P), 3840x2160 (4K).

- HDMI2: 1280x1024, 1920x1080 (1080P).

- VGA (HDMI Mirror): 1024x768, 1280x1024, 1920x1080 (1080P).

BANDWIDTH:

- Incoming: 320Mbps.

- Outgoing: 320Mbps.

DECODING SUPPORT:

- H.265.

- H.264.

RECORDING:

- Real-Time 64CH 8MP.

- FPS: 1600 (PAL) / 1920 (NTSC).

PLAYBACK:

- 16 Channels Simultaneously.

AUDIO:

- Input: 1 Channel on device (RCA) + IP Camera inputs.

- Output: 1 Channel on device (RCA).

- 2 Way audio.

ALARM:

- Input: 8 Dry Contacts + IP Camera inputs.

- Output: 4 Dry Contacts + IP Camera outputs.

STORAGE:

- 8 x SATA (Up to 8TB Each).

- 2 x E-SATA (Up to 8TB Each).

- RAID 0/1/5/6/10 Support.

USB PORT:

- 2 x USB2.0.

- 1 x USB3.0.

NETWORK:

- 2xRJ-45: 1000Mbps Each.
