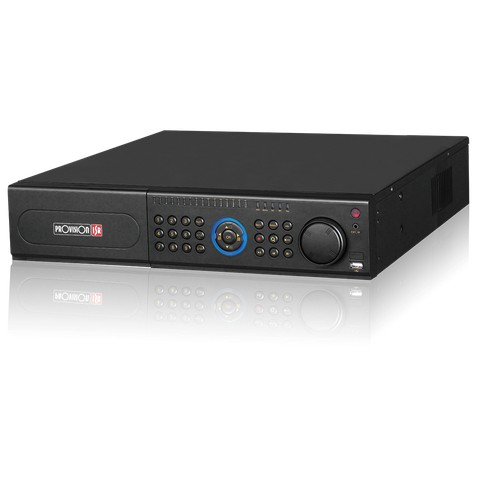

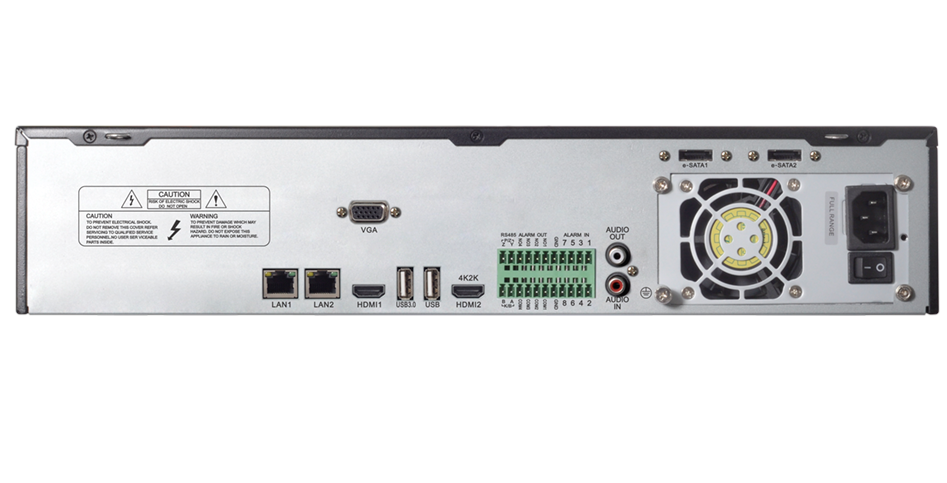

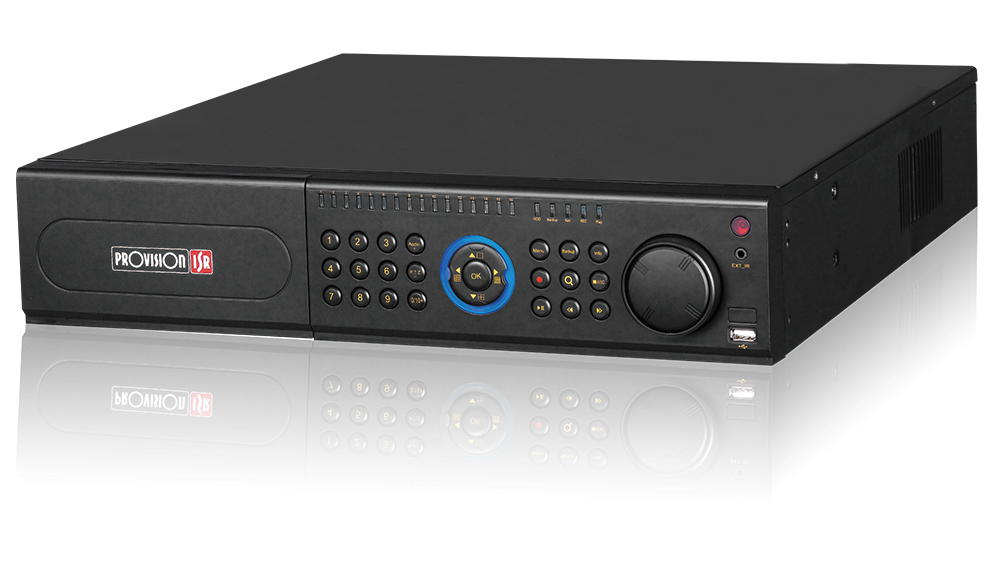

- 64 Channel NVR 64CH 5MP NVR Input: 64 Channel (Via Network) Output: HDMIx2, VGA 2U Case, 8 HDD Audio In/Out 2x1000Mbps Network.

Video:

- Input: 64 Channel via Standard network connection (1 x RJ-45 Network Port).

- Output: VGA (HDMI Mirror): 1280x1024, 1920x1080 (1080P).

- HDMI1: 1280x1024, 1920x1080 (1080P).

- HDMI2: 1280x1024, 1920x1080 (1080P), 3840x2160 (4K).

Bandwidth:

- Incoming: 320Mbps.

- Outgoing: 320Mbps.

Decoding Support:

- H.265.

- H.264.

Recording:

- Real-Time 64CH 5MP.

- FPS: 1600 (PAL) / 1920 (NTSC).

- Resolution: 2592x1944.

Playback:

- 16 Channels Simultaneously.

Audio:

- Input: 1 Channel on device (RCA) + IP Camera inputs.

- Output: 1 Channel on device (RCA).

- 2 Way audio.

Alarm:

- Input: 8 Dry Contacts + IP Camera inputs.

- Output: 4 Dry Contacts + IP Camera outputs.

Storage:

- 8 x SATA (Up to 6TB Each).

USB Port:

- 2 x USB2.0.

- 1 x USB3.0.

Network:

- 2xRJ-45: 1000Mbps Each.
